Up to 900 sqm/h

High-speed & High-quality Industrial Sublimation Printer

      LAFORTE 600 Paper is an industrial inkjet sublimation printer designed to deliver high-volume manufacturing of extremely high-quality printed textiles. Enabling a print speed of up to 900 sqm/h at a print resolution of up to 1200 dpi, LAFORTE 600 Paper offers an ideal solution to achieve industrial productivity with outstanding print quality, With a compact design and 24 to 48 printheads, this printer uses a waterless process that reduces the consumption of water and energy, resulting in drastically lowered production costs and environmental impact.

      Speed

      Up to 900 sqm/h
      Up to 540 sqm/h
      *All the printing speeds have been calculated based on 1600mm-width printer and may vary depending on the substrates, the level of the quality and the selected print width.

      Key features



      Anti mist System


      Printing technology
      Variable drop inkjet from 4pl to 72pl
      (2.656 nozzles - 2 colors)


      Printing resolution
      300 / 600 / 900 / 1200


      Ink tank capacity
      5/10/20 kg/lt


      Media feeding system
      Rotary sticky belt system
      Advancement accuracy 40 microns


      Interface
      Ethernet 10 GB


      DST - aleph® HQ multi-pass printing
      Dynamic stitching technology

      Printer models and specs

      POWER SETTINGS
      19 kW / 3 phases+neutral /
      380–420V ±10% / 16A

      COMPRESSED AIR CONSUMPTION
      6-8 bar – 250 L/min

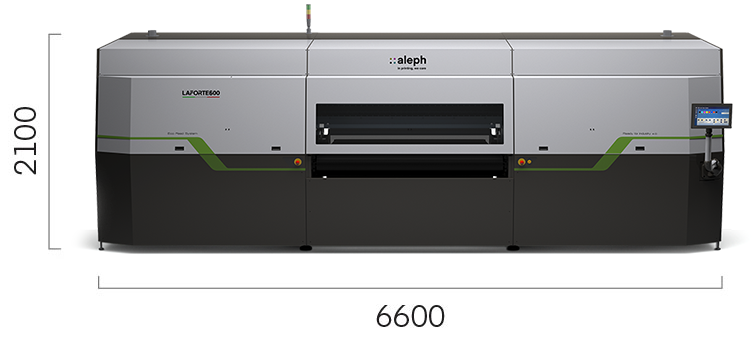

      DIMENSIONS
      6600 L x 2350 P x 2100 H mm

      WEIGHT
      4.600 kg
