Up to 850 sqm/h (24 printheads) / 1000 sqm/h (48 printheads)

High-speed & High-quality Industrial Textile Printer

      LAFORTE 600 Fabric is an industrial inkjet direct-to-textile printer designed to deliver high-volume manufacturing of extremely high-quality printed textiles. Enabling a print speed of up to 850 sqm/h (24 printheads) and up to 1000 sqm/h (48 printheads) at a print resolution of up to 1200 dpi, LAFORTE 600 Fabric offers an ideal solution to achieve industrial productivity with outstanding print quality. Featuring a compact design, the printer enables a waterless process that reduces the consumption of water and energy, while drastically cutting overall production costs and environmental impact.

      Speed

      Up to 850 sqm/h – 24 Print Head

      Up to 750 sqm/h – 24 Print Head

      Up to 1000 sqm/h – 48 Print Head

      Up to 850 sqm/h – 48 Print Head

      *All the printing speeds have been calculated based on 1500mm-width printer and may vary depending on the substrates, the level of the quality and the selected print width.

      Key features



      Anti mist System


      Printing technology
      Variable drop inkjet from 4pl to 72pl
      (2.656 nozzles - 2 colors)


      Printing resolution
      300 / 600 / 900 / 1200


      Ink tank capacity
      5/10/20 kg/lt


      Media feeding system
      Rotary sticky belt system
      Advancement accuracy 40 microns


      Water consumption
      25-50 L/h


      Interface
      Ethernet 10 GB


      DST - aleph® HQ multi-pass printing
      Dynamic stitching technology

      Printer models and specs

      POWER SETTINGS
      21 kW / 3 phases+neutral /
      380–420V ±10% / 16A

      COMPRESSED AIR CONSUMPTION
      6-8 bar – 250 L/min

      WATER CONSUMPTION
      w20-50 L/h

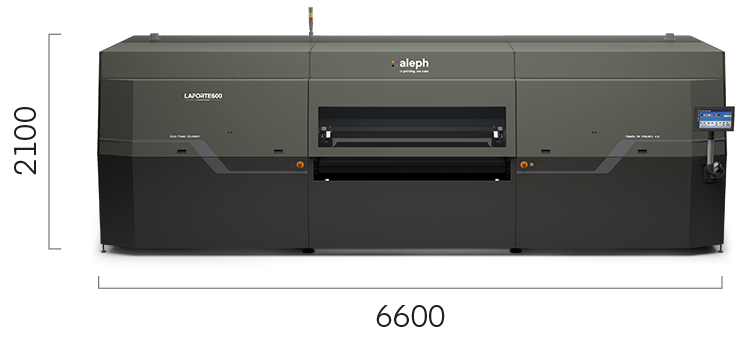

      DIMENSIONS
      6600×2350×h 2100 mm

      WEIGHT
      4.600 kg
