Up to 940 sqm/h
A Special Printer Tailored to Special Home Textiles

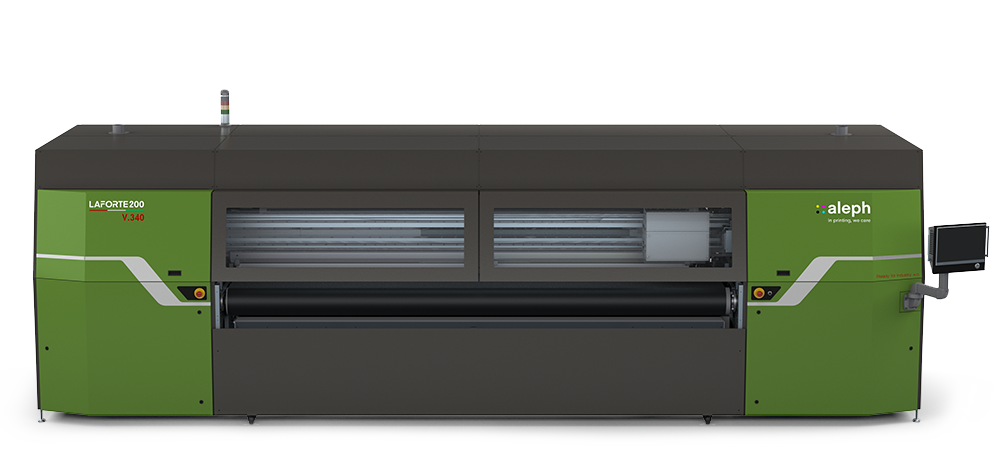

Featuring a width of 340mm, aleph’s LAFORTE 340 has been designed to address the specific needs of home textiles market segment. Streamlining the production of wallpapers, curtains, drapery and upholstery, this direct-to-textile inkjet printing solution enables to achieve superior print quality, high speed (up to 570 sqm/h) with high fastness and at a competitive cost.
Speed
Up to 570 sqm/h – 8 Print Head
Up to 380 sqm/h – 8 Print Head
Up to 940 sqm/h – 16 Print Head
Up to 630 sqm/h – 16 Print Head
*All the printing speeds have been calculated based on 3000mm-width printer and may vary depending on the substrates, the level of the quality and the selected print width.
Key features
Anti mist System
Printing technology
Variable drop inkjet from 4pl to 72pl
(2.656 nozzles - 2 colors)
Printing resolution
300 / 600 / 900 / 1200
Ink tank capacity
5/10/20 kg/lt
Media feeding system
Rotary sticky belt system
Advancement accuracy 40 microns
Water consumption
25-50 L/h
Interface
Ethernet 10 GB
DST - aleph® HQ multi-pass printing
Dynamic stitching technology
Printer models and specs
POWER SETTING
19 kW / 3 phases+neutral /
380–420V ±10% / 16A
COMPRESSED AIR CONSUMPTION
6-8 bar – 250 L/min
WATER CONSUMPTION
w20-50 L/h
DIMENSIONS
6180×2100×h 2400 mm
WEIGHT
4.400 kg
LaForte Fabric® Series
Full Range
