Up to 280 sqm/h
Cost-effective Direct to Fabric Digital Printer

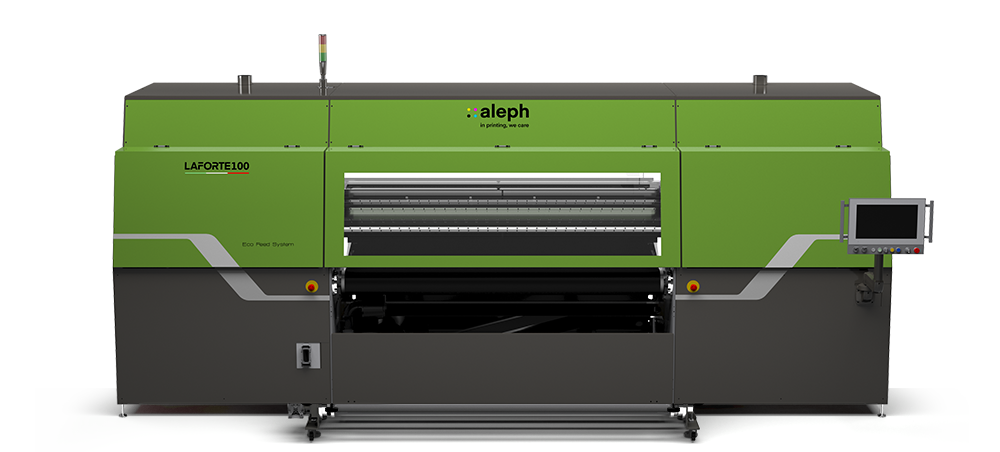

LAFORTE 100 Fabric is an efficient and versatile inkjet printing system. Featuring a compact design, 8 printheads and a patented rotary sticky belt, this printer makes an affordable, cost-effective and extremely flexible direct-to-textile solution and is ideal to address low to mid print volume productions (up to 280 sqm/h).
Speed
Up to 280 sqm/h
Up to 140 sqm/h
*All the printing speeds have been calculated based on 1500mm-width printer and may vary depending on the substrates, the level of the quality and the selected print width.
Key features
Anti mist System
Printing technology
Variable drop inkjet from 4pl to 72pl
(2.656 nozzles - 2 colors)
Printing resolution
300 / 600 / 900 / 1200
Ink tank capacity
5/10/20 kg/lt
Media feeding system
Rotary sticky belt system
Advancement accuracy 40 microns
Water consumption
25-50 L/h
Interface
Ethernet 10 GB
DST - aleph® HQ multi-pass printing
Dynamic stitching technology
Printer models and specs
POWER SETTINGS
21 kW / 3 phases+neutral / 380–420V ±10% / 16A
COMPRESSED AIR CONSUMPTION
6-8 bar – 250 L/min
WATER CONSUMPTION
w20-50 L/h
DIMENSIONS
4700×2590×h 2250 mm
WEIGHT
2.700 kg
