Advanced Industrial Digital Textile Print Solution

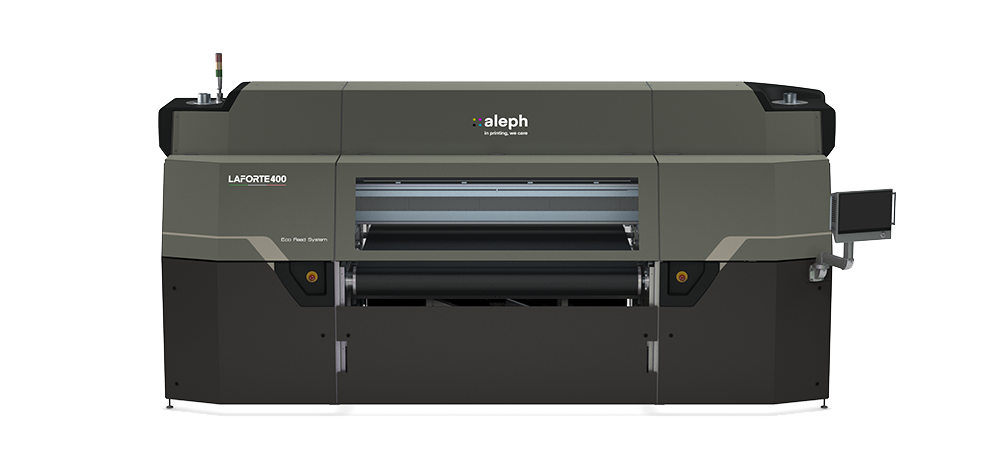

LAFORTE 400 Fabric is an inkjet printing solution designed to enable efficient and cost-effective high-volume production in the fashion and apparel space. Delivering an excellent speed – up to 630 sqm/h, LAFORTE 400 features water-based pigment inks and 12 to 16 printheads – the number of printheads is adjustable based on the production volumes and needs – and is equipped with variable drop technology, enabling to print at up 1200 dpi resolution.
Speed
Up to 630 sqm/h
Up to 480 sqm/h
Key features
Anti mist System
Printing technology
Variable drop inkjet from 4pl to 72pl
(2.656 nozzles - 2 colors)
Printing resolution
300 / 600 / 900 / 1200
Ink tank capacity
5/10/20 kg/lt
Media feeding system
Rotary sticky belt system
Advancement accuracy 40 microns
Water consumption
25-50 L/h
Interface
Ethernet 10 GB
DST - aleph® HQ multi-pass printing
Dynamic stitching technology
Printer models and specs
POWER SETTING
16 kW / 3 phases+neutral / 380–420V ±10% / 16A
COMPRESSED AIR CONSUMPTION
6-8 bar – 250 L/min
WATER CONSUMPTION
w20-50 L/h
DIMENSIONS
4680×2300×h 2400 mm
WEIGHT
2.800 kg
POWER SETTING
16 kW / 3 phases+neutral / 380–420V ±10% / 16A
COMPRESSED AIR CONSUMPTION
6-8 bar – 250 L/min
WATER CONSUMPTION
w20-50 L/h
DIMENSIONS
5180×2300×h 2400 mm
WEIGHT
3.000 kg
LaForte Fabric® Series
Full Range
