LAFORTE Fabric® Series

Explore our Full Range

Why Should You Opt for aleph's LAFORTE technology?

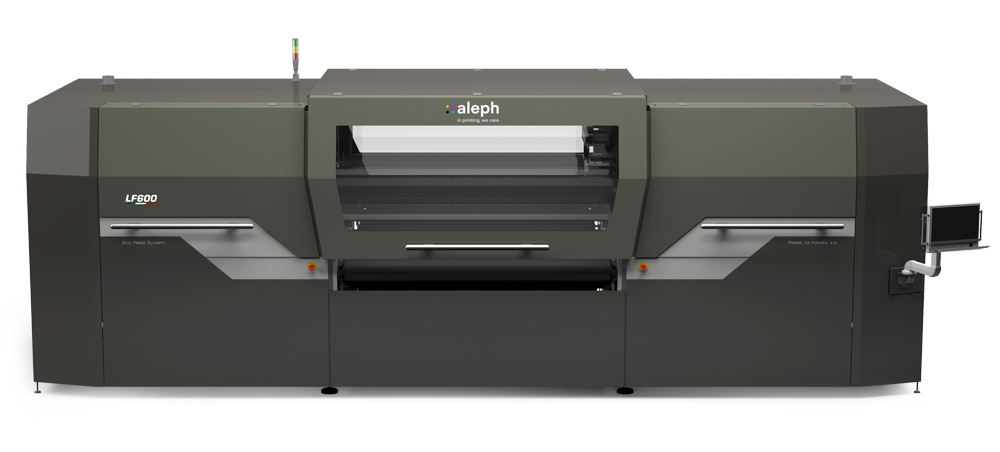

aleph’s advanced inkjet direct-to-fabric print technology is engineered to provide high-speed, superior quality, extreme application flexibility and green performances.

The newest MY2021 series features the latest developments of the R&D department, which leverages the company's extensive expertise in digital textile, as well as the constant feedback from customers utilising aleph's technologies.

The MY2021 direct-to-fabric platforms offer a easy-to-handle, streamlined printing process, while also enabling extreme flexibility in terms of applications. The series is also equipped with advanced core technologies that allow to significantly reduce the overall environmental impact.



Anti mist System


Printing technology
Variable drop inkjet from 4pl to 72pl
(2.656 nozzles - 2 colors)


Printing resolution
300 / 600 / 900 / 1200


Ink tank capacity
5/10/20 kg/lt


Media feeding system
Rotary sticky belt system
Advancement accuracy 40 microns


Water consumption
25-50 L/h


Interface
Ethernet 10 GB


DST - aleph® HQ multi-pass printing
Dynamic stitching technology

Distinctive features

  • Dual channel: 2 colours per printhead
  • High speed & precise jetting
  • Print resolution up to 1200 dpi
  • Significantly reduced maintenance costs due to lower number of printheads
  • Dynamic stitching technology for HQ multi-pass printing
  • Advancement accuracy below 20 microns during printing process enabled by aleph’s proprietary technology

Core technologies

  • Compact design and robust aluminium frame
  • Proprietary HW/SW systems enabling optimised alignment of the printheads
  • Intelligent ink hydraulic system designed to handle negative pressure for each individual colour channel
  • Dust-proof suction system
  • Touch panel
  • Removable print carriage to facilitate the change of the ink tank
  • Removable washing unit to facilitate cleaning and maintenance of the system
