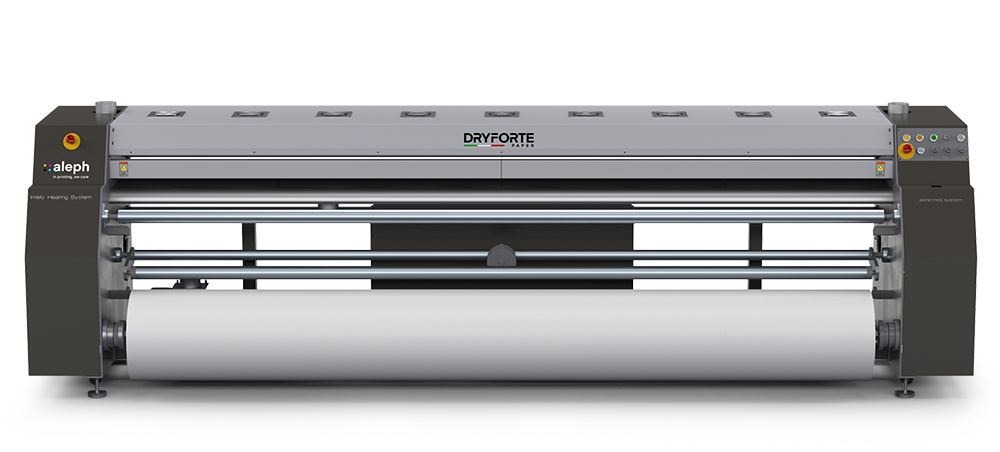

Dryer LAFORTE 320

Advanced high-speed drying technology for transfer paper featuring infrared plasma lamps

aleph's dryer LAFORTE V320 Paper features advanced proprietary rapid drying systems engineered to enable efficient drying of digitally printed transfer paper with water-based inks.

Equipped with an infrared plasma lamp unit and featuring a production speed of up to 800sqm/h, this dryer has been designed to address the specific needs of soft signage market segment. Combined with aleph's LAFORTE 200 V320 Paper printer, it contribute to streamlining the production of indoor and outdoor textile-based communications in all sizes, as well as to ensure that superior print quality and high-level fastness are achieved.

Featuring internal temperature sensors and an innovative control software, the drying system allow to keep the drying temperature monitored and under control. The use of ultrasonic sensors enables continuous recovery of transfer paper.

Speed

Up to 800 sqm/h

Key features



Anti mist System


Printing technology
Variable drop inkjet from 4pl to 72pl
(2.656 nozzles - 2 colors)


Printing resolution
300 / 600 / 900 / 1200


Ink tank capacity
5/10/20 kg/lt


Media feeding system
Rotary sticky belt system
Advancement accuracy 40 microns


Water consumption
25-50 L/h


Interface
Ethernet 10 GB


DST - aleph® HQ multi-pass printing
Dynamic stitching technology

Printer models and specs

Dryer LAFORTE V320

UNIT DIMENSIONS: 4300X1650X1200

WEIGHT: 1000 kg

INFRARED LAMPS: 16

POWER SETTING: 20 kW / 3 phases+neutral / 380–420V ±10% / 16A
