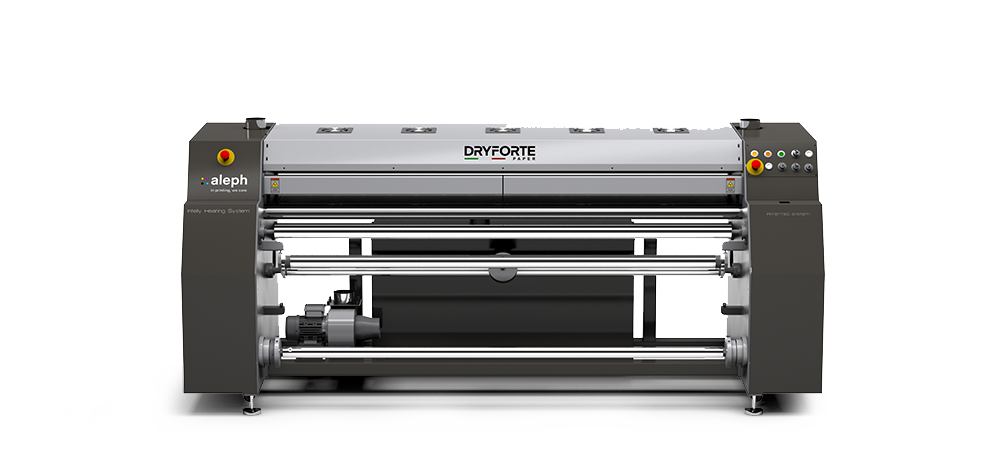

Dryer LAFORTE Paper

Advanced high-speed fabric drying technology featuring infrared plasma lamps with extraction surface

aleph's LAFORTE Paper dryer series features advanced proprietary rapid drying systems engineered to enable efficient drying of water-based digitally printed transfer paper for out of home applications.

The drying systems of the series are equipped with an infrared plasma lamp unit, available in different print sizes (1800mm, 2200mm, 3200mm) and can achieve a production speed of up to 800sqm/h. Featuring internal temperature sensors and an innovative control software, the drying systems allow to keep the drying temperature monitored and under control. The use of ultrasonic sensors enables continuous paper recovery, while a brand-new paper transport systems featuring an advanced vacuum system facilitates the drying process. aleph’s LAFORTE Paper dryers display a patented ventilation system for waste oil recovery.

Designed with flexibility and ease of use in mind, LAFORTE Paper dryers can connect and interface with any industrial inkjet textile plotter available on the market.

Speed

Up to 600 sqm/h

Key features


Oil condensate recovery system

Innovative infra red-lamps

Low energy consumption system

Low energy consumption system
aleph intelly oven

PLC with touch screen display

Available print heights:
1900mm/2200mm/3200mm

Performance
Drying systems up to 600 sqm/h

Digital sinchronization with
any printing industrial printer

Pneumatic expansion bar

Ac motors with variable speed

Printer models and specs

Dryer LAFORTE 100 Paper (190 Model)

UNIT DIMENSIONS: 2760x930x1200mm

WEIGHT: 550 kg

INFRARED LAMPS: 10

POWER SETTING: 14 kW / 3 phases+neutral / 380–420V ±10% / 16A

Dryer LAFORTE 200 Paper (190 Model)

UNIT DIMENSIONS: 2900X1950X1200mm

WEIGHT: 650 kg

INFRARED LAMPS: 10

POWER SETTING: 14 kW / 3 phases+neutral / 380–420V ±10% / 16A

Dryer LAFORTE 400 Paper (190 Model)

UNIT DIMENSIONS: 2900x2050x1200mm

WEIGHT: 700 kg

INFRARED LAMPS: 15

POWER SETTING: 19 kW / 3 phases+neutral / 380–420V ±10% / 16A

Dryer LAFORTE 400 Paper (220 Model)

UNIT DIMENSIONS: 3200x2050x1200mm

WEIGHT: 750 kg

INFRARED LAMPS: 18

POWER SETTING: 22 kW / 3 phases+neutral / 380–420V ±10% / 16A
